Features:
1.Basic component for 12V /24V resident off-grid system. Multiple panels can be wired in series for 24v battery charging.
2.Off grid inverter: faster and more sensitive reaction; Perfect electrical protection function; Aluminum alloy housing, not rust, heat-resisting, cold-resistant as well as anti-corrosion.
3.10A charge controller :The regulator is only suitable for lead-acid,lithium ions and LiFePO4 batteries.
4.Designed for RVs, cabins, homes, boats, back-up and remote power use
5.Solar charging will provide on average 800 Watt Hours (Wh) or 70 Amp hours of charge per day (depends on sunlight availability)

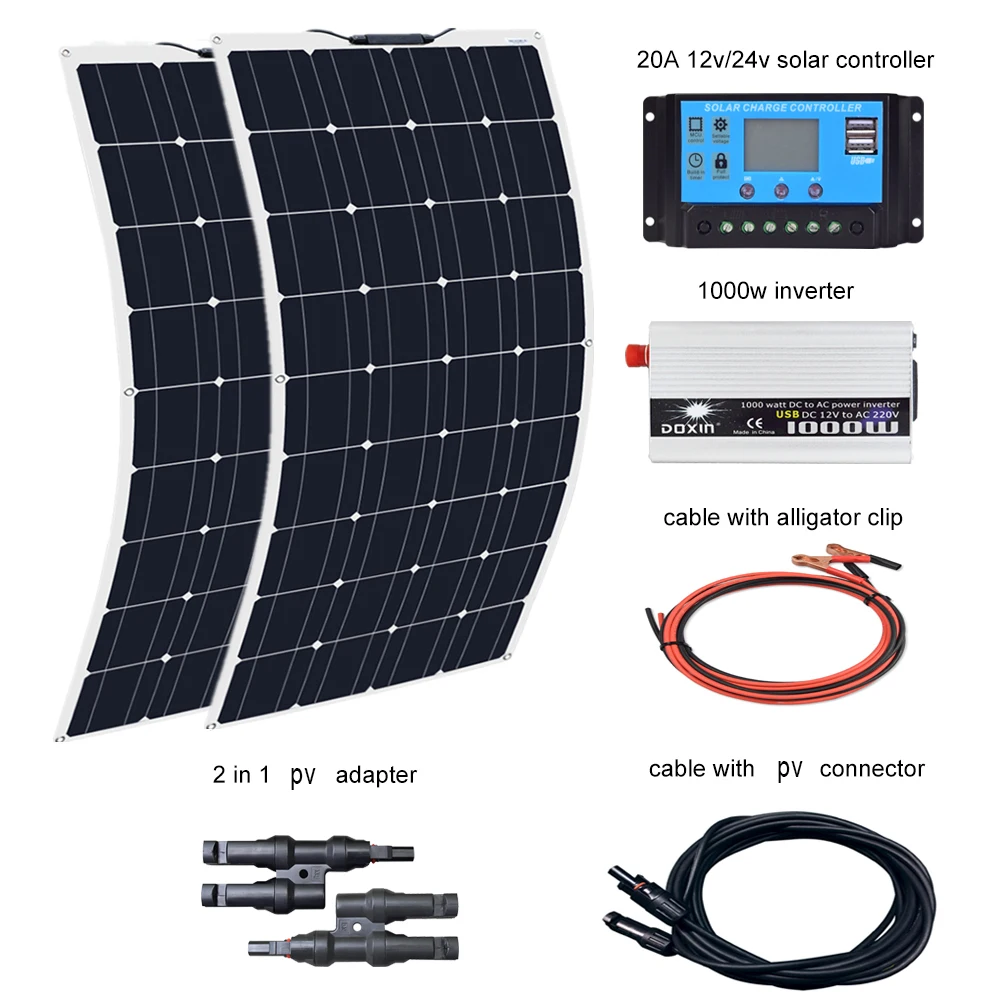

Package Includes:
2X Solar Panel 100W
1X 20A controller
1X 1 set 3m cable with PV connector(2.5mm2)
1X 1 set 3m cable with alligator clip(2.5mm2)
1x 1 set 2 in 1 adapter
1X 12V to(220V/110V) 1000W Inverter(optional)


Specification of solar panel
Cell material: Monocrystalline silicon
Pmax(Power at Maximum under STC) :100W
Imp(Current at Max Power, A): 5.55A
Vmp(Voltage at Max Power, V):18V
Voc(Voltage at Open Circuit, V):21.6V
Isc(Current at Short Circuit,A): 6.11A

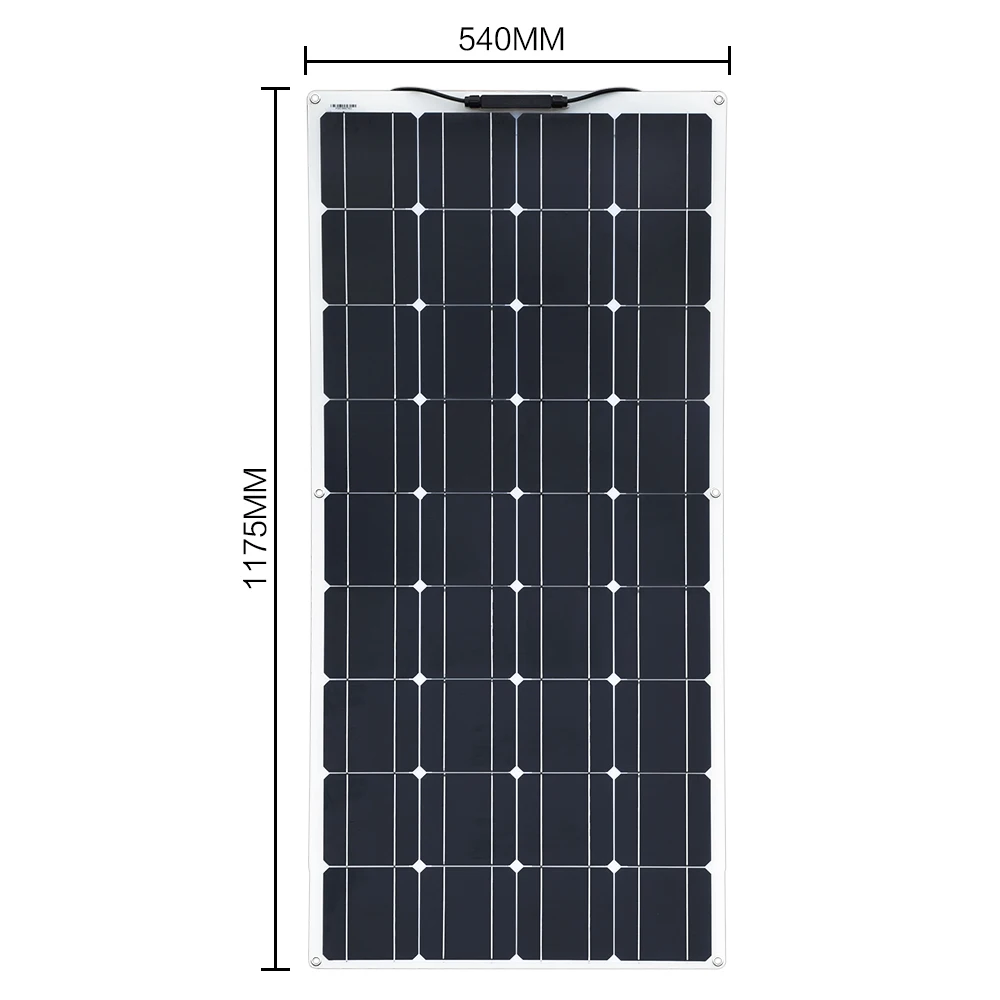

Size of module: 1175*540*3MM
STC(Standard Testing Condition: 1000W/Square Meter AM=1.5 25 C Degree
Solar Cell Efficiency: 19.5%
Temperature Range: -20±60℃
Tolerance Wattage: ±5%
Weight per piece: 2.2kg

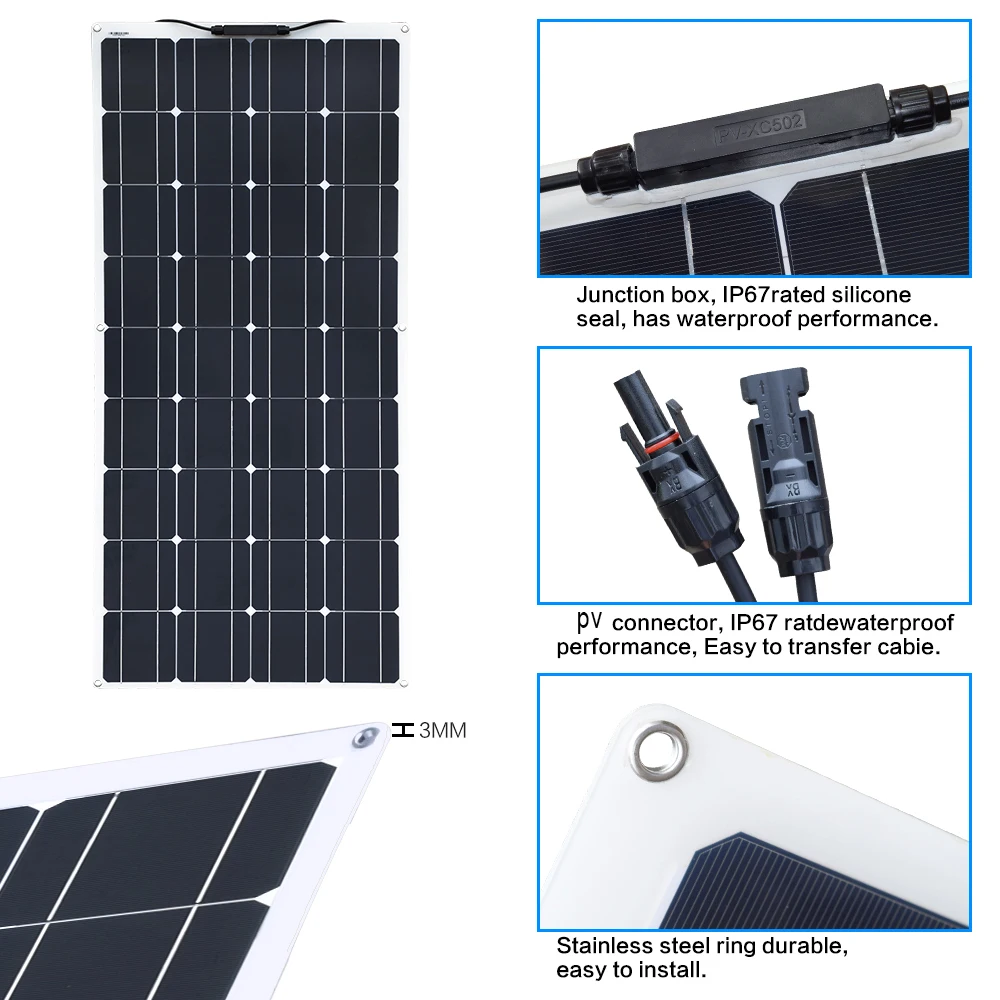

Junction Box Type: IP67
Length of Cables: 90cm
Module Efficiency: 19%
Output tolerance: ±5%
Standard Test Conditions: Am1.5 100mw/cm225℃
Temperature coefficients of Isc: 0.065+/-0.015%/℃
Temperature coefficients of Voc: -(2.23+/-0.1)/℃
Temperature coefficients of Pm: -(0.5+/-0.05)/℃
Temperature coefficients of Im: +0.1/℃ Temperature coefficients of Vm: 0.38/℃

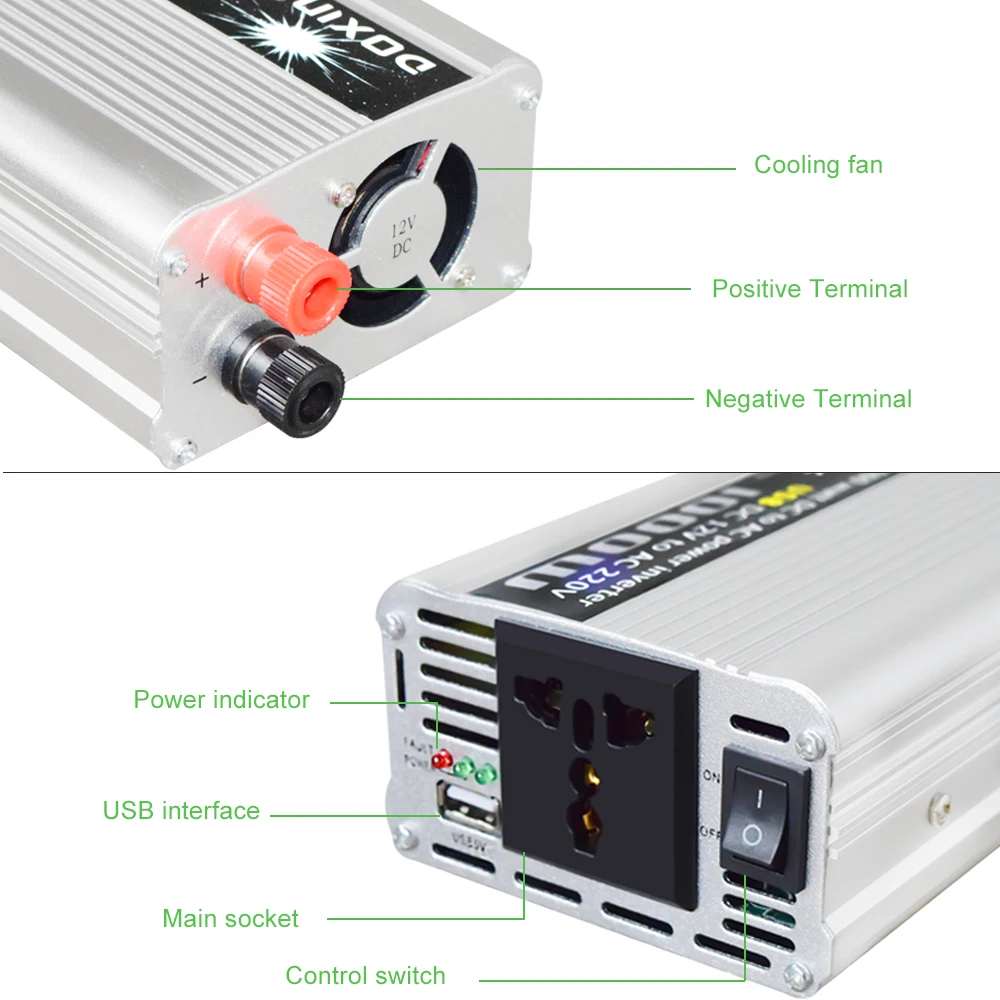

Specification of Inverter
Power: 1000W
Load power: 500W
Input voltage: 12V
Output voltage 1:12V 110V /220V
Output voltage 2: DC 5V– 2.1A
Size: 167*90*50mm

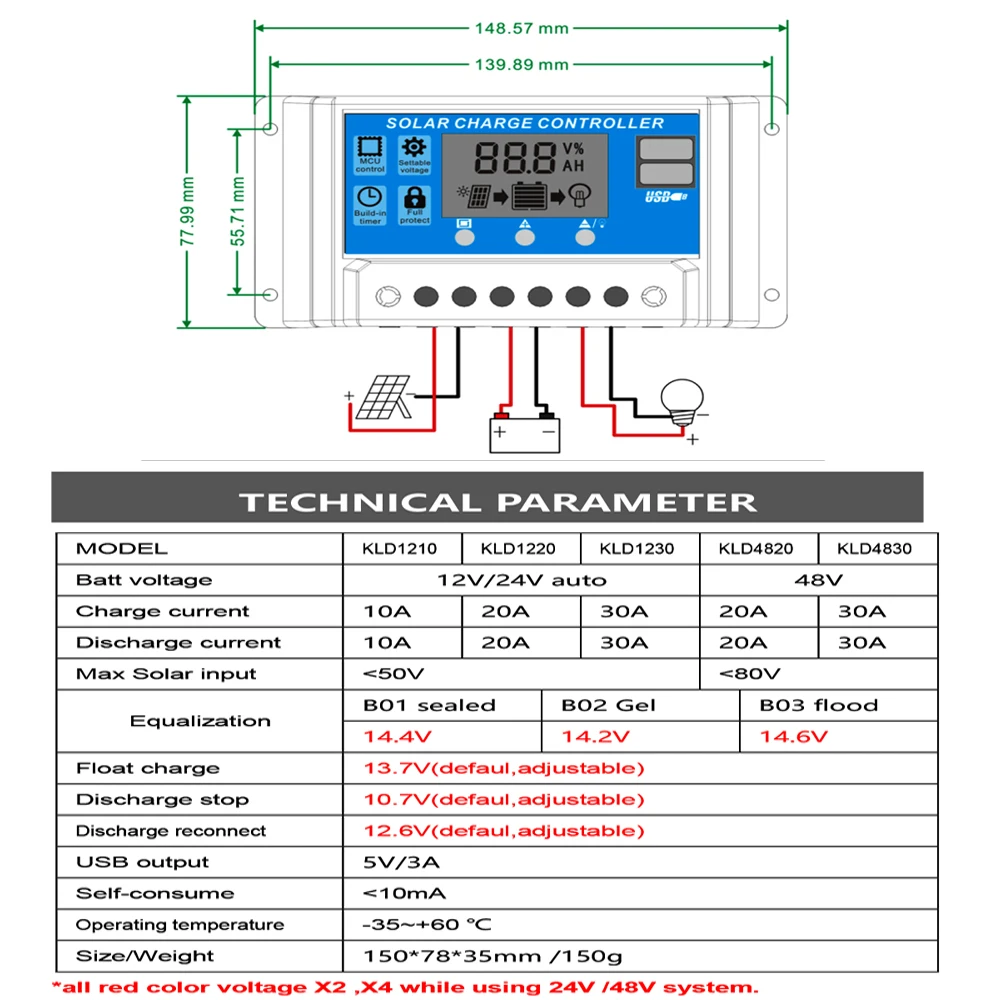

Specification of Controller :
Rated AMP :10A
MAX Input :50V
Battery Type :LEAD-ACID 12V
Charging Voltage :13.7V
LOW-Voltage Disconnect : 10.7V
LOW-Voltage Reconnect: 12.6V

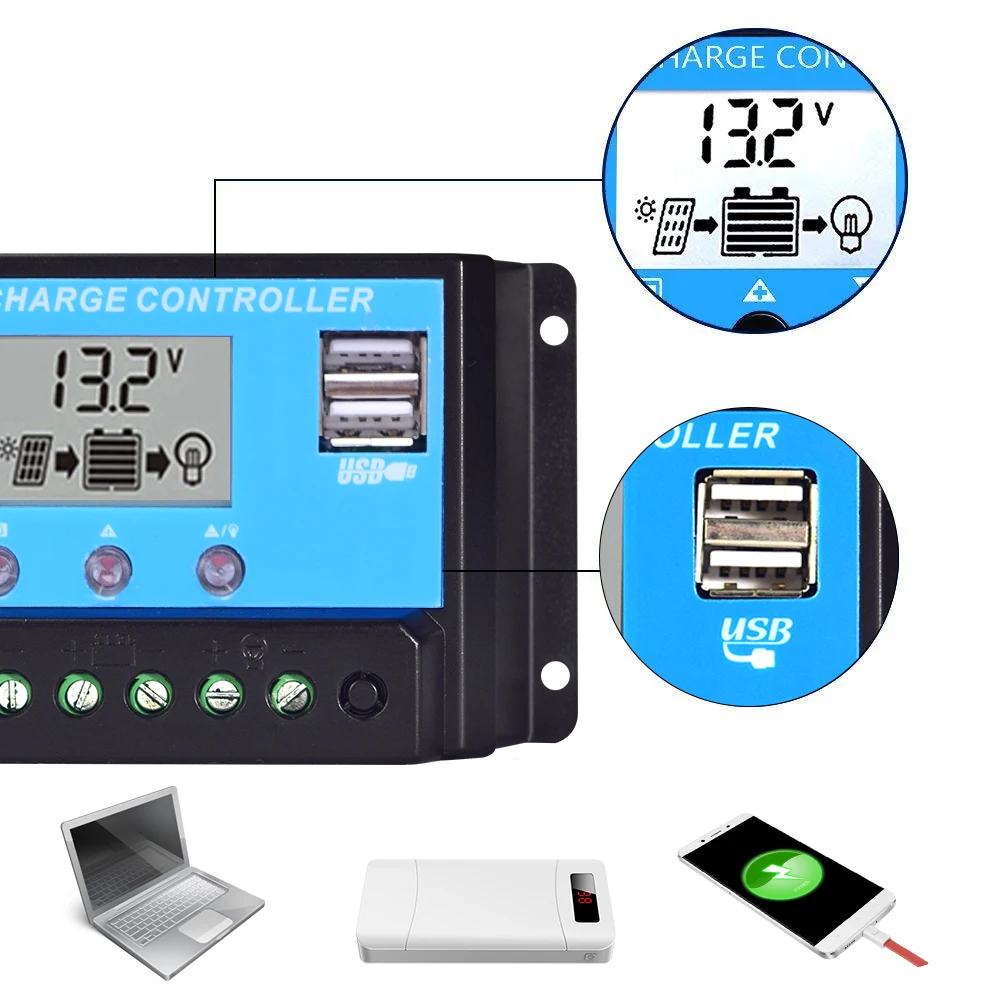

USB Output: 5V 2A
Standby Lost:<10mA
Working Temp: -35~ 60 ℃
Size: 133*70*33mm
Weight: 150g
