Electrical Characteristics |
Thermal Characteristics |
||
Max Power Pmax |
100W |
Temperature coefficient of Pmax |
-0.38%/℃ |
Max Power voltage Vmp |
16V |
Temperature coefficient of Voc |
-60.5mV/℃ |
Max Power Current Imp |
6.25A |
Temperature coefficient of Isc |
2.2mA/℃ |
Open Circuit Voltage Voc |
19.2V |
NOTC |
47℃+/-2℃ |
Short Circuit Current Isc |
6.875A |
Operating Temperature |
-20℃ – +65℃ |
Maximum System Voltage |
600V |
Mechanical Characteristics |
|
Number of cells in Series |
32 |
Dimension |
1050X530X2.5mm |
Cell size |
125X125mm |
Weight |
2.04kg |
Max Power tolerance |
±5% |
Cable |
0.9 meter 2X2.5mm |
Flexible solar panel packing List
100w solar panel = 1pcs 100w solar panel = one packing
200w solar panel = 2pcs 100w solar panel= one packing
300w solar panel =3pcs 100w solar panel= two packing
400w solar panel =4pcs 100w solar panel= two packing

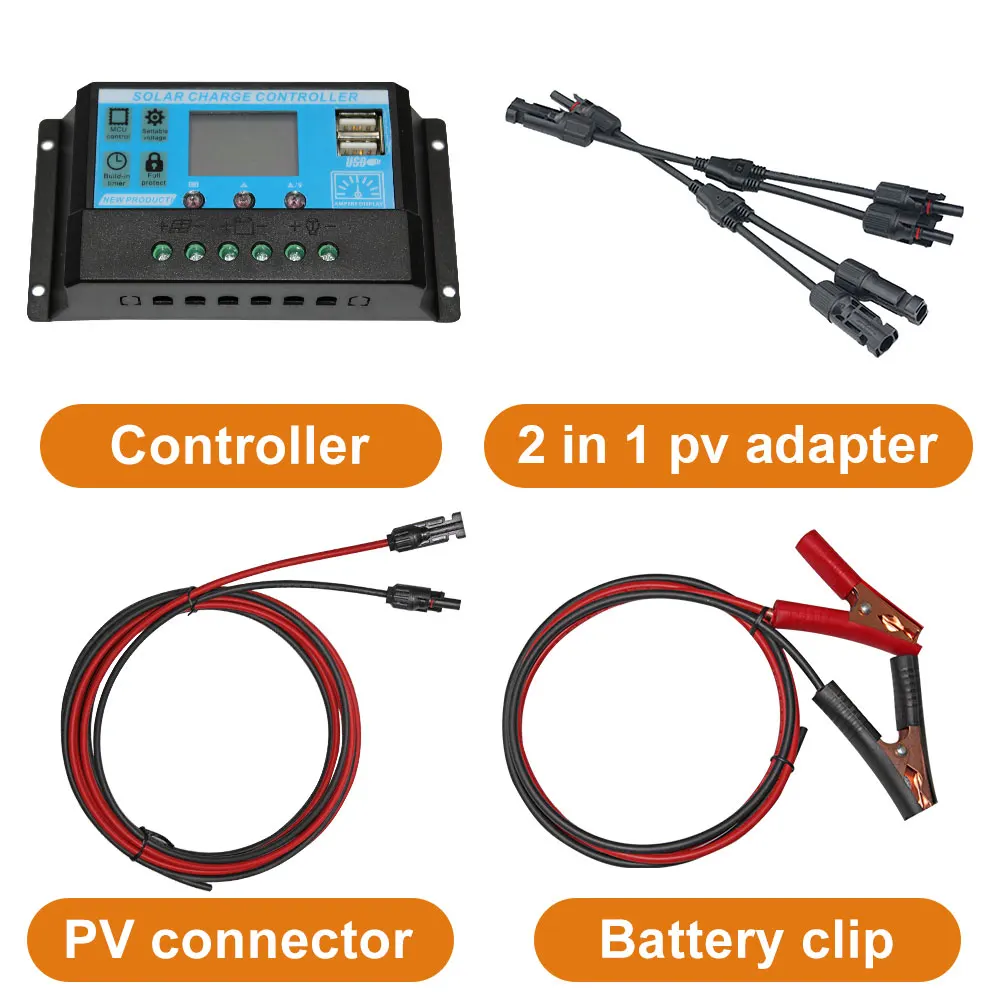

Flexible solar panel kit packing List
1. 100w solar panel kit :
1pcs 100w 12v flexible solar panel
1pcs 10A 12V/24V pwm LCD solar controller

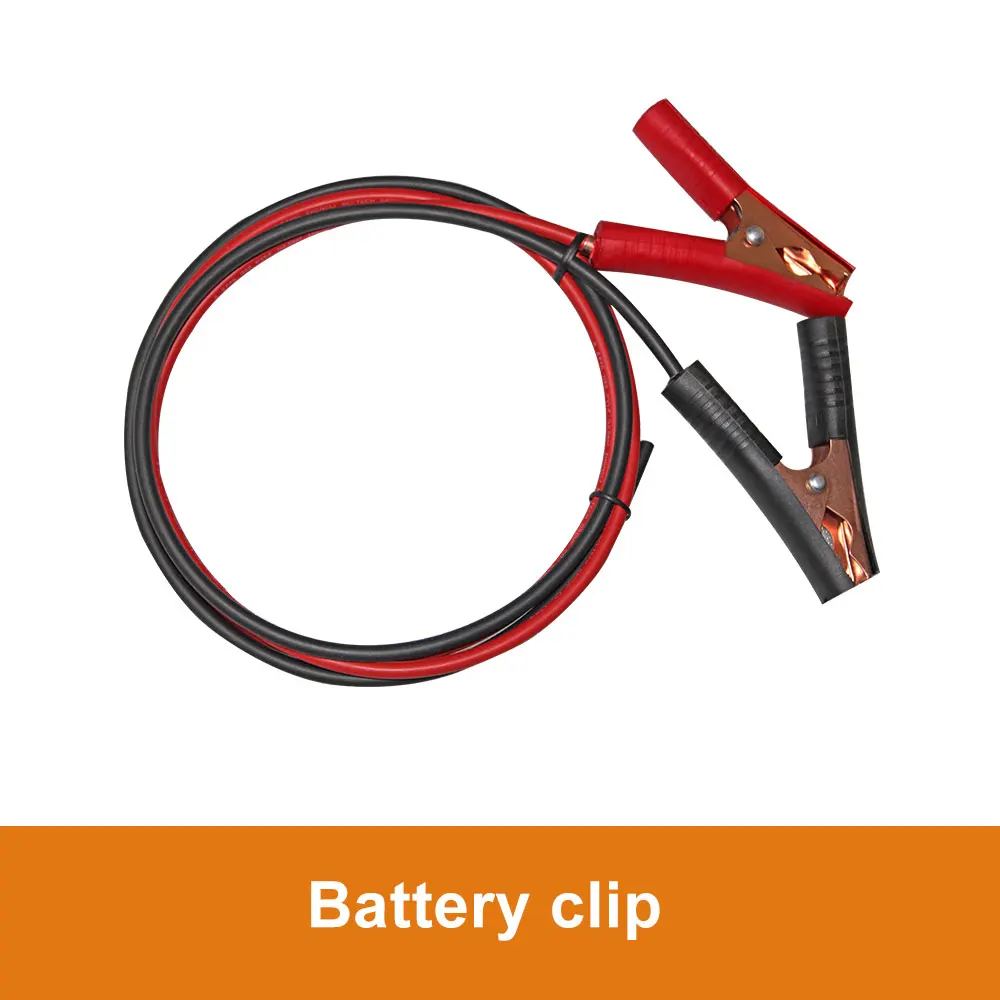

1set cable with battery clips
1set cable with PV solar connector

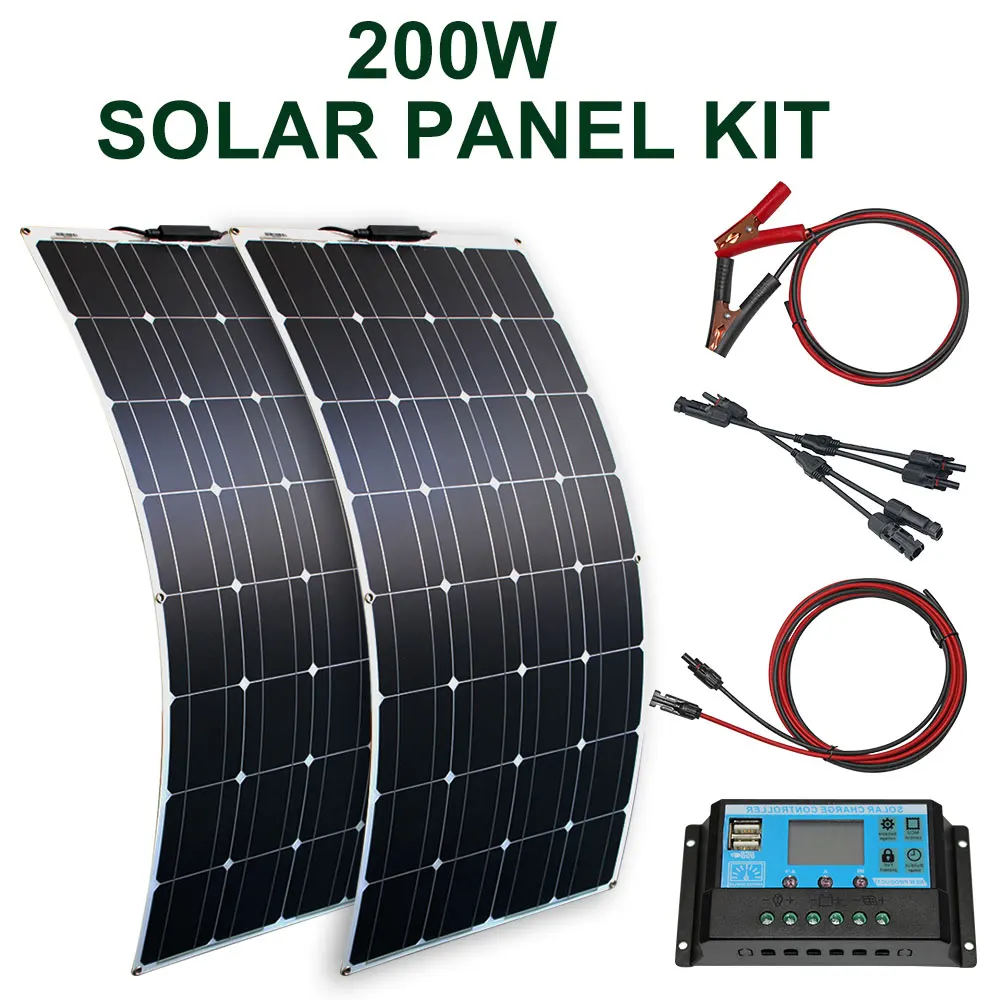

2. 200w solar panel kit :
2pcs 100w 12v flexible solar panel
1pcs 20A 12V/24V pwm LCD solar controller
1set cable with battery clips
1set cable with PV solar connector
1pair 2 in 1 solar adapter

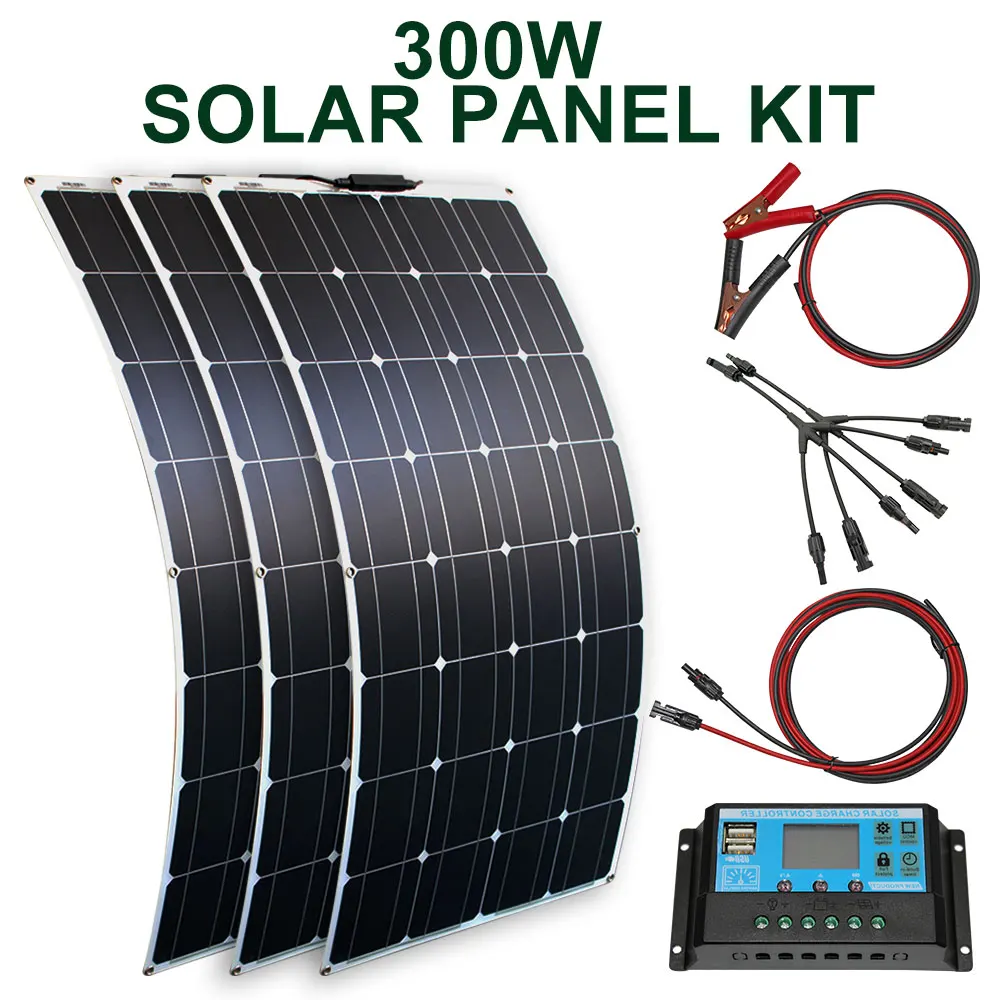

3. 300w solar panel kit :
3pcs 100w 12v flexible solar panel
1pcs 20A 12V/24V pwm LCD solar controller
1set cable with battery clips
1set cable with PV solar connector
1pair 3 in 1 solar adapter





MODEL |
10A |
20A |
30A |
Battery Voltage |
12V/24V Auto |
||
Charging Current |
10A |
20A |
30A |
Discharging Current |
10A |
10A |
10A |
Max Solar input |
12v battery, the highest 23v; 24v battery when the highest 46v |
||
Equalization |
14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) |
||
Float charge |
13.7V(defaul,adjustable) |
||
Discharge stop |
10.7V(defaul,adjustable) |
||
Discharge reconnect |
12.6V(defaul,adjustable) |
||
Charge reconnect |
13V |
||
Voltage of open light |
Solar Panel 8V(Light lights delay) |
||
Voltage of close light |
Solar Panel 8V(Light off delay) |
||
USB output |
5V/2.5A |
||
Self-consume |
<10mA |
||
Operating temperature |
-35°C~+60°C |
||
Size/weight |
133.5*70*35mm |
165g |









Safety Instructions
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
System Connection
1.Connect the battery to the charge regulator – plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator – plus and minus.
3. Connect the consumer to the charge regulator – plus and minus.

Description

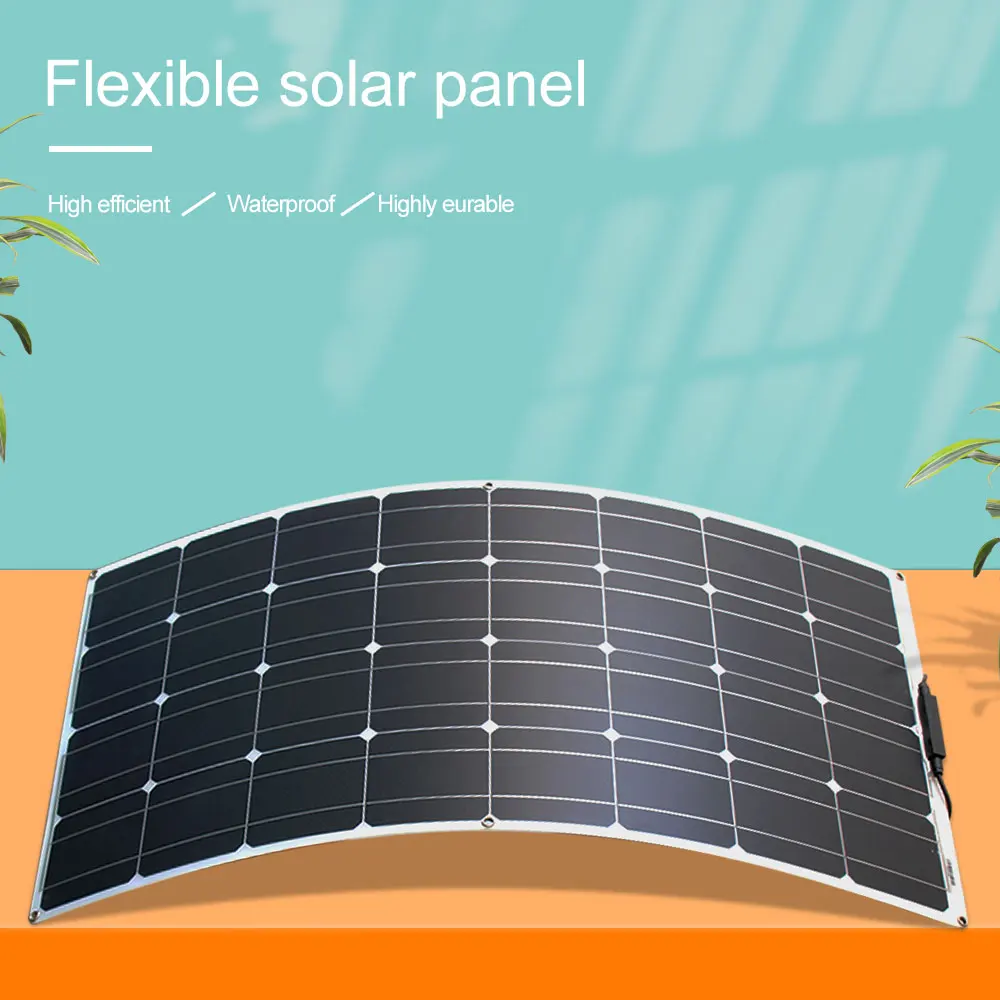

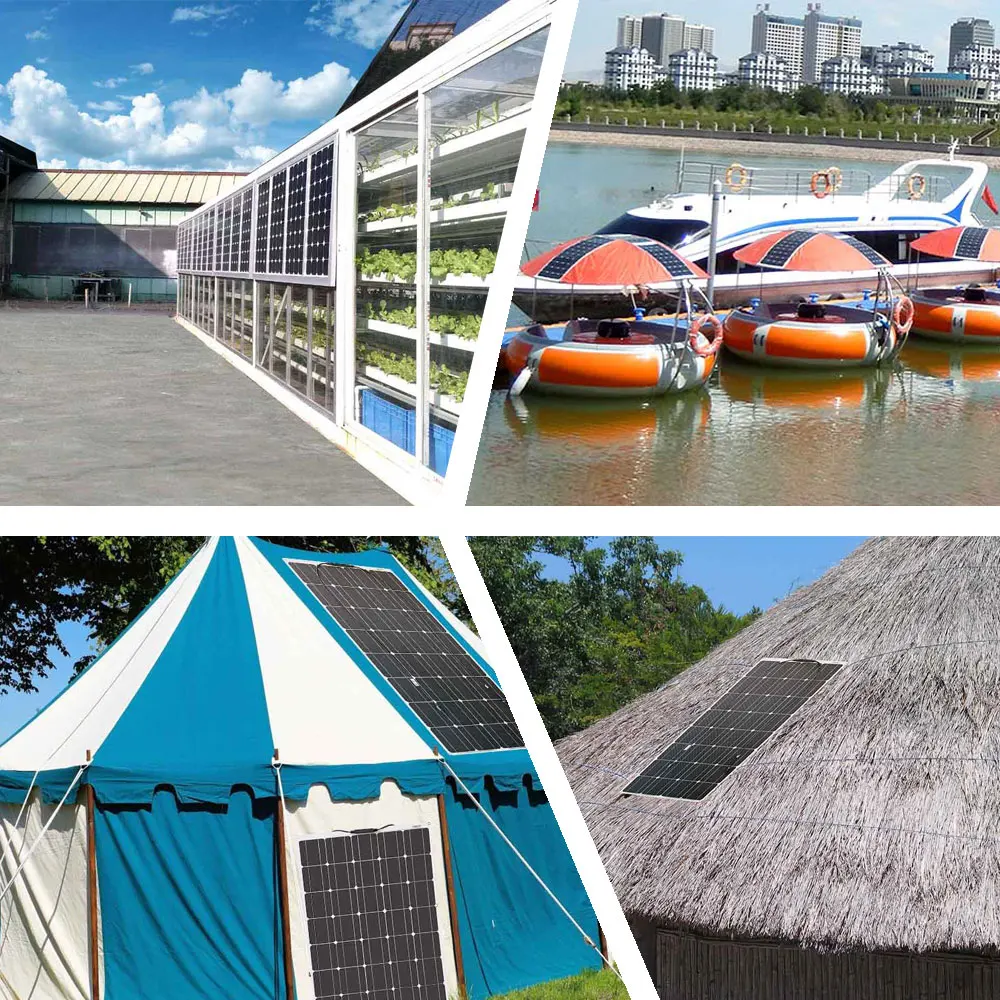

Different with traditional solar panels which are rigid and often enclosed in tempered glass, the 100W Flexible Solar Panel is anything but traditional. The 100W Flexible Solar Panel is thin and capable of flexing up to 30 degrees that can easily be installed on curved surfaces, high efficiency up to 21% with small size for big power output, light weight just 1.7kg only a quarter of its traditional 100W glass solar panel. This panel can also be used for various applications, including providing power on a boat, van, golf car, tricycle, tent roof, even though hanged on window to power the lights and other DC applications. The 100W solar panel can charge the 12V or 24V battery or charge the 3.7V, 6V, 9V devices with a regulator。
Advantages
High Efficient
High solar cell efficiency: Monocrystalline 21%
Protection
Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
Extremely Flexible
This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream
Ultra Lightweight
Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze
Super Thin
Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup
Highly Durable
Rigorously tested, the 100W panel was designed to withstand extreme wind and snow loads
Easy to install: Metal holes in the corners of the product for fixing screws and mounting.












About the parcel send from China
Sometimes the customs will charge the clearance fees. If you reject the item because of customs clearance, you will have to pay for the shipping cost of the returned item.
When the goods arrive at the destination country, please contact the local logistics service provider for customs clearance and delivery.

Dear Buyer, please kindly notice:
If you choose to ship from overseas warehouses other than China, the solar panel will be shipped from the local overseas warehouse, and the solar panel system accessories will be shipped from China. The transportation time is about 25-30 days.
