Description:
Brand Name:FlySky
FS-i6X Transmitter Specifications:
Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6)
Mode: mode 1 is right throttle hand (throttle stick on the right side)
mode 2 is left throttle hand (throttle stick on the left side)
Features:
Item Name: FS-iA6 receiver
Channels: 6
Frequency Range :2.4-2 .48 GHz
Number of Band: 140
Transmitting Power: not more than 20dBm
Receiver Sensitivity:-105dBm
2.4G modes: Automatic frequency second generation digital systems
Encoding: GFSK
Weight: 6.4g
Input Power :4.0-6 .5 V DC
Dimensions: 40.4 x 21.1 x 7.35 mm
Color: Black
i-BUS Interface: No
Data Acquisition Interface: No
Certification: CE0678,FCC
Usage: Suitable for RC Airplane / helicopter
Compatible Transmitter: Flysky FS-i10,FS-i6,FS-i4,FS-GT2F,FS-GT2E,FS-GT2B

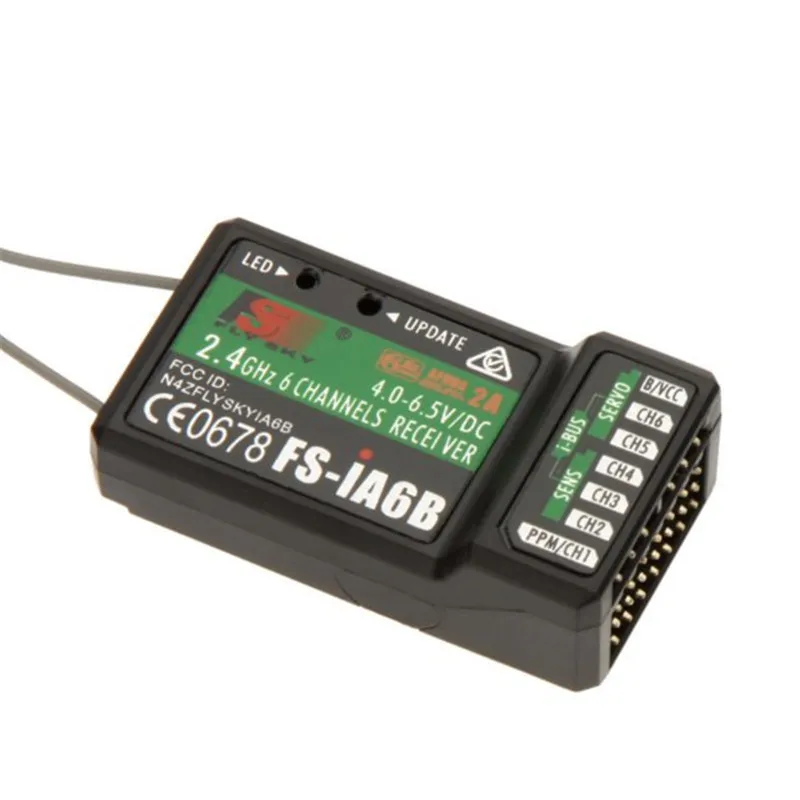

FS-IA6B Receiver Specifications:
Item Name: IA6B
Channel: 6
Model type: fixed wing/helicopter/gl ider
RF receiver sensitivity: -105dBm
Modulation: GFSK
System type: AFHDS2A/AFHDS
Channel resolution: 1024 steps
Bind port: yes
Power port: yes( VCC)
Power: 4V -6.5V DC
Weight: 14.9g
Antenna lenght: 26mm
Size: 47.4*262.2*15 mm
Certificate: CE ,FCC
Brand Name: Flysky
Item: X6B i-BUS Receiver
Channels: 6(PWM), 8(PPM), 18(i-BUS)
Model Type: Multi-Totor
RF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz
Number of bands: 135
RF Power: No more than 20 dBm
RX Sensitivity: -95dBm
2.4GHz protocol: AFHDS 2A
Modulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna)
Power input: 4.0-8.4V
On-line Update: Yes(Wireless)
Range: >300m
Weight: 4.5g
Size: 36*22*7.5mm
i-BUS Port: Yes
Certificate: CE0678, FCC ID: N4ZX6B00

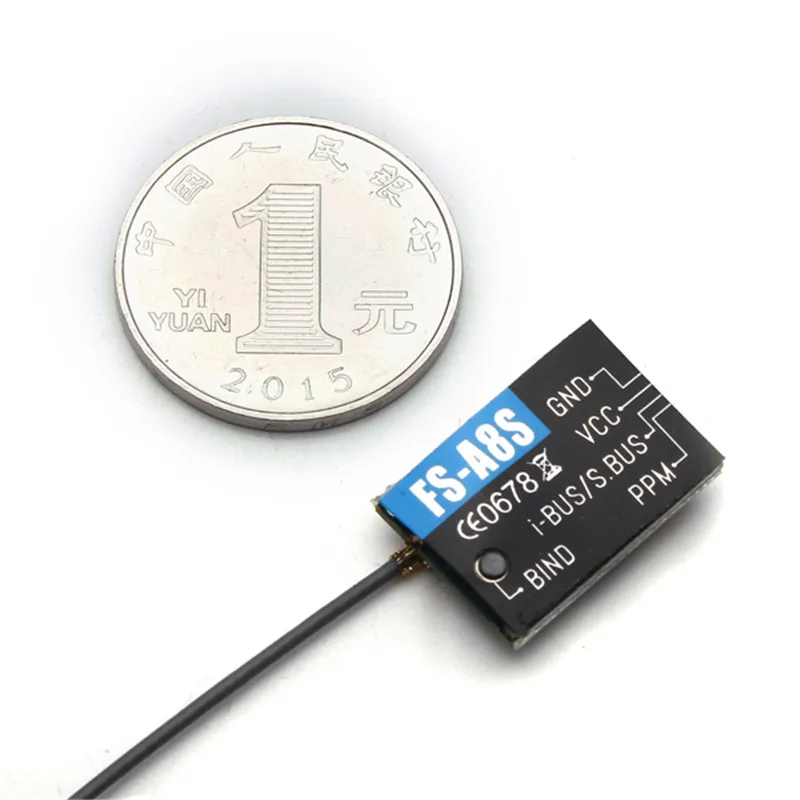

FS-A8S Receiver Specifications:
Brand Name:Flysky
Item Name:FS-A8S Receiver
Channels: PPM 8CH, i-BUS 18CH
Model type: Multi-rotor
Frequency range: 2.408-2.475GHz
b and width: 500KHz
b and number: 135
RX Sensitivity: -92 dBm
2.4GHz system: AFHDS 2A
Modulation type: GFSK
DSC port: PPM/i-BUS/S.BUS
Transfer method: FHSS
Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS
Antenna length: 26mm (Not including brass contacts)
Input power supply: 4.0-8.4V
Display method: LED
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
Working current: 40mA
Each channel data: depend on the transmitter
Channel delay: <15mS
Size: 20*14*5.3mm
Weight: 1.2g
Certificate: CE0678, FCCID: N45ZA8S00
FS-iA10B Receiver Specifications:
Brand Name: Flysky
Item Name: FS-iA10B
Channel: 10
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Antenna Length: 26mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Weight: 19.3g
Size: 51mm*34mm*15mm
Color: Black
i-Bus Interface: Yes
Data Acquisition Interface: Yes
Model Type: Airplane / Helicopter
Compatible Transmitter: Compatible with FS-i4, FS-i6,FS-i6S, FS-i10,FS-iT4S
FS-RX2A P ro V1 Receiver Specifications:
Channel: 10(IBUS), 8(PPM)
RF Range: 2.408-2.475GHZ
Number of bands: 135
RX Sensitivity: -92dBm
2.4GHz protocol: AFHDS 2A
Signal output: IBUS, PPM
Antenne length: 33mm
Power input: 5.0-20V
Control distance: 500m+
Current: 30MA
Size: 12*15mm
Weight: 0.9g
Flit10 Receiver Specifications:
Channel: 10
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Antenna Length: 10mm * 2 (dual antenna)
Input Power: 4.0-6.5V DC
Weight: 3.1g
Size: 25mm*15.5mm*5.5mm
Color: Black
Signal Output: IBUS
Telemetry: Yes
Remote Distance: 500m
Support Betaflight / INAV IBUS Telemetry
Fli14 Plus Receiver Specifications:
Item Name: 2.4G 14CH Compatible Flysky AFHDS-2A Receiver
Item name: Multi-protocol TX Module
Package Included:
1X Flysky FS-i6X 10CH 2.4GHz AFHDS Transmitter (the receiver can be choosen by yourself)
