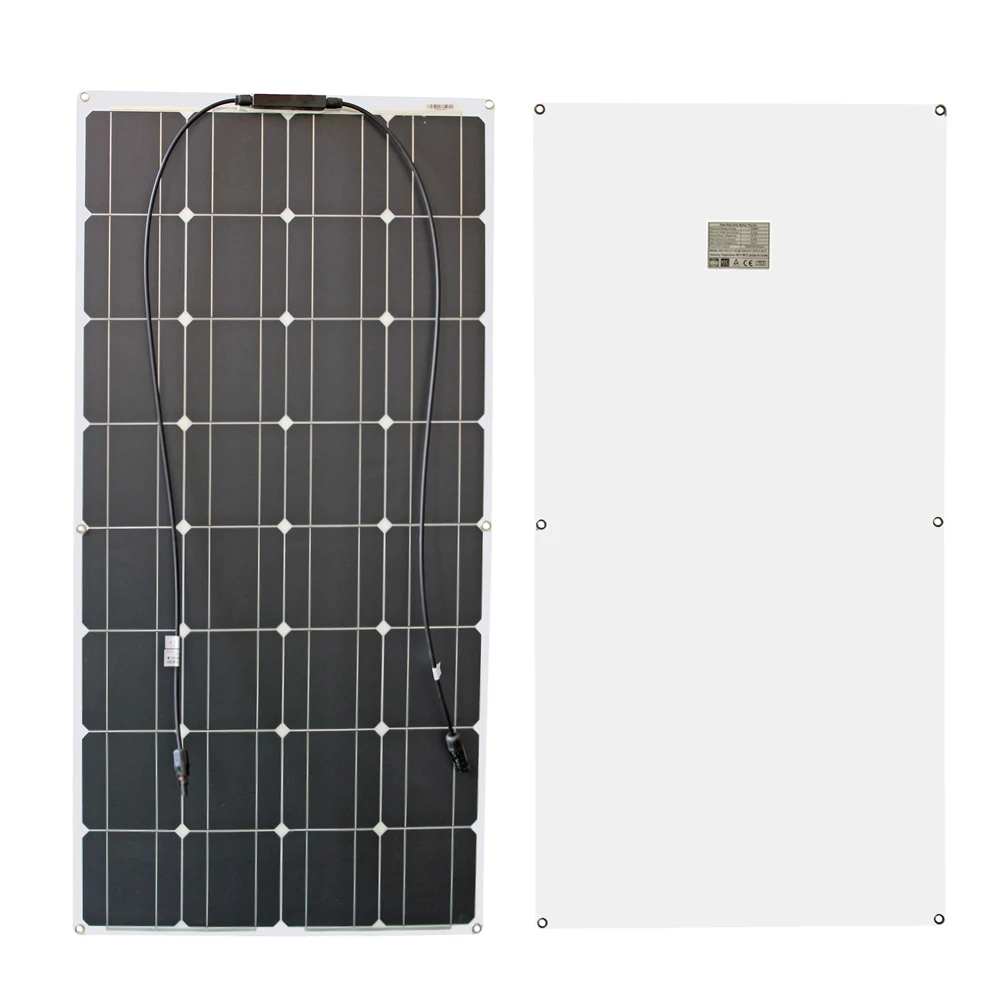

The waterproof semi-flexible monocrystalline solar panel is far more durable than traditional glass and aluminum models; the junction box is sealed and waterproof.
Bendable Solar Panel
The plastic back sheet can be curved to a maximum 30 degree arc and mounted on an RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface.
This solar panel packs 100W of power, but it only weighs a mere 4.45bs(2.02kg), making it easier to transport, hang and remove; Unique frameless design and 6 metal reinforced mounting holes for easy installation.
Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.

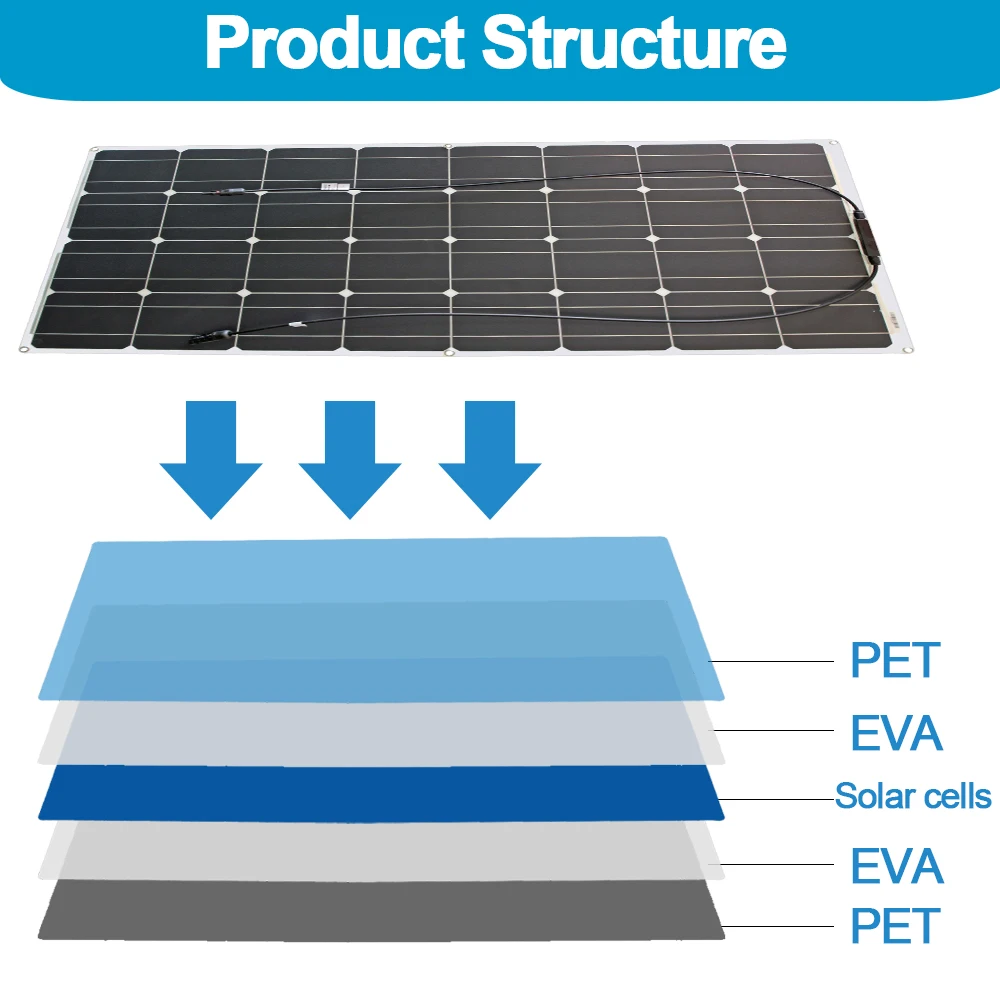

* Anti-reflective PET to absorb more sunlight keeping higher output
* 0.5mm EVA keep the solar panel more durable
* 21% high conversion efficiency solar cell
* TPT to keep the solar panel lifetime more than 10 years
Products Parameter at Standard Test Conditions
Max Power 100W
Max Power voltage 16V
Max Power Current 6.25A
Open Circuit Voltage 19.2V
Short Circuit Current 6.875A
Maximum System Voltage 600V
Number of cells in Series 32
Cell size 125X125mm
Max Power tolerance ±3%
Temperature coefficient of Pmax -0.38%/℃
Temperature coefficient of Voc -60.5mV/℃
Temperature coefficient of Isc 2.2mA/℃
Operating Temperature -20℃ – +65℃
Cable 0.9 meter 2X2.5mm

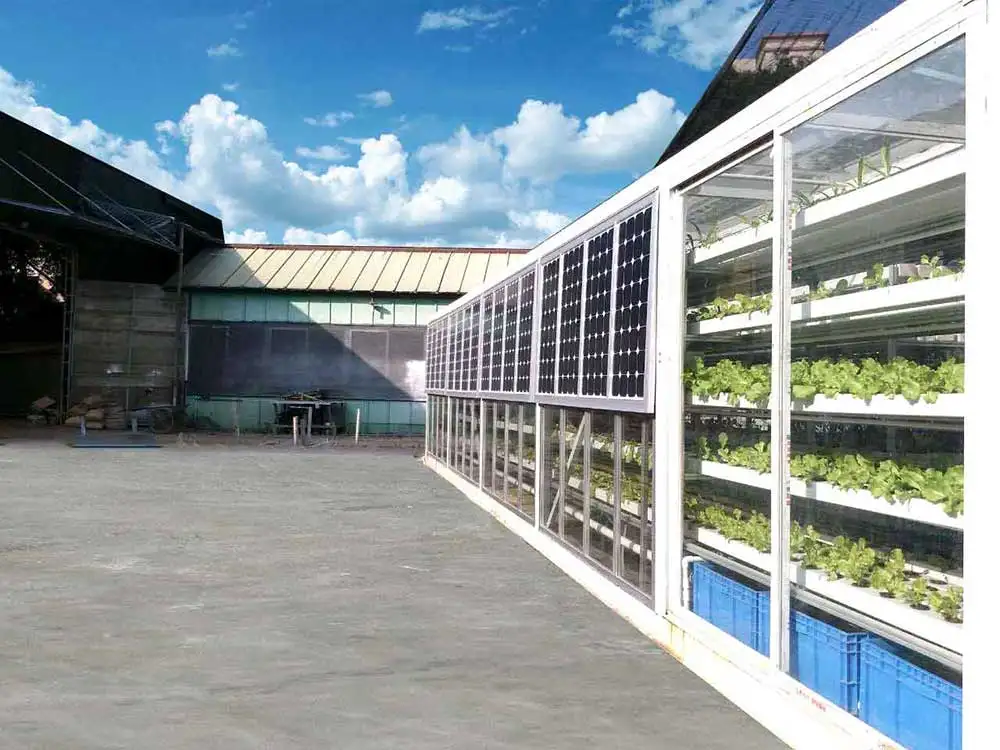

Flexible solar panels can be widely used in household appliances, social public facilities, ranches, tents, camping and roofs of houses.

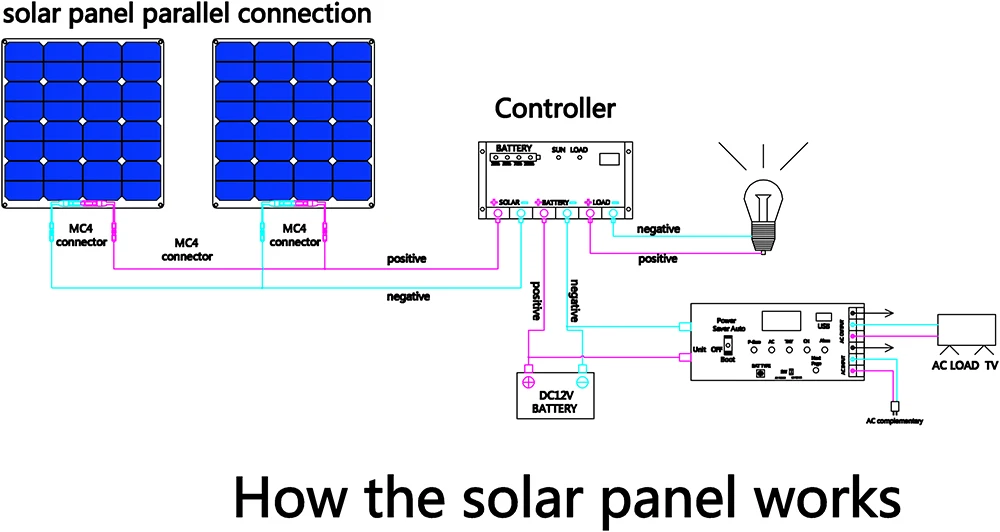

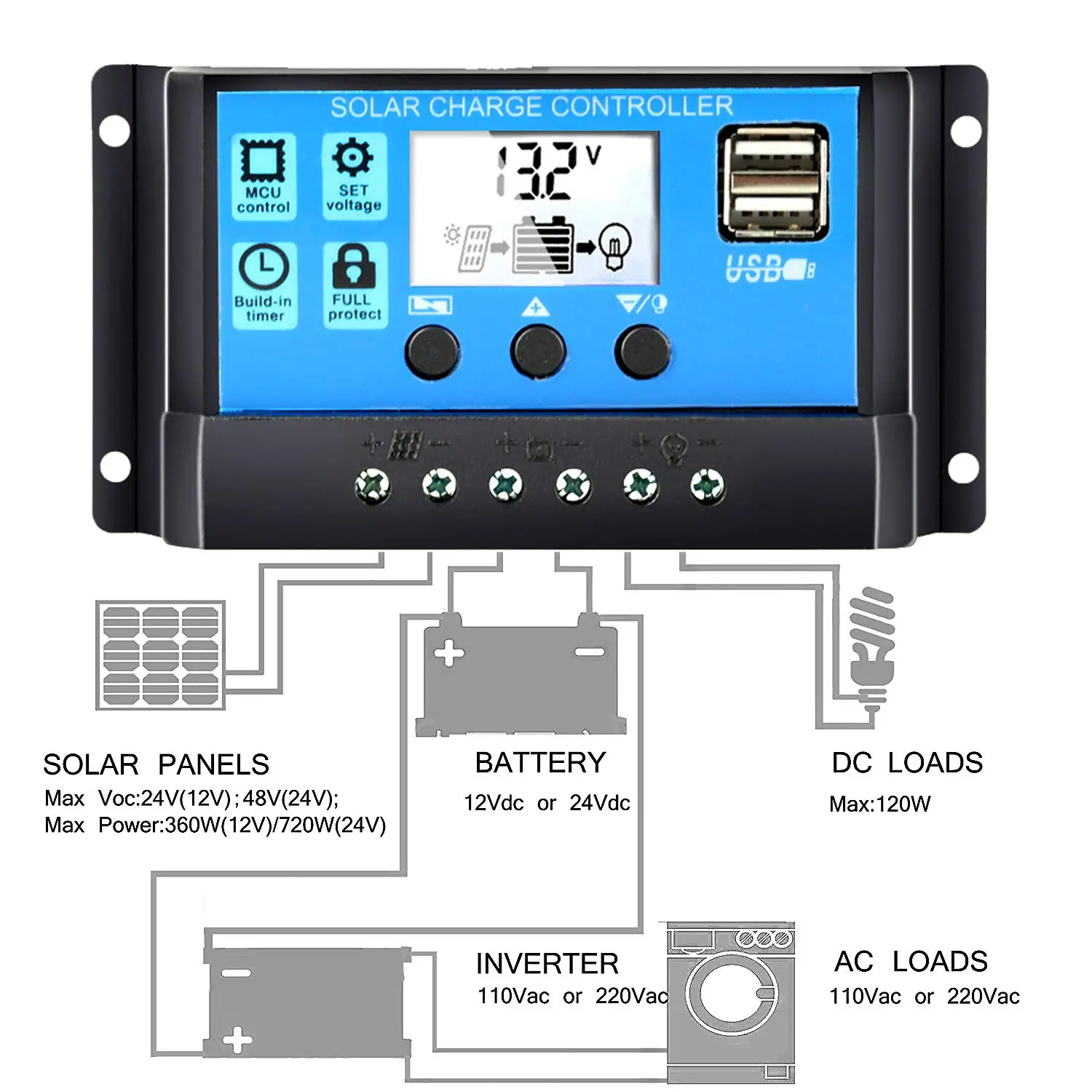

Solar system connection

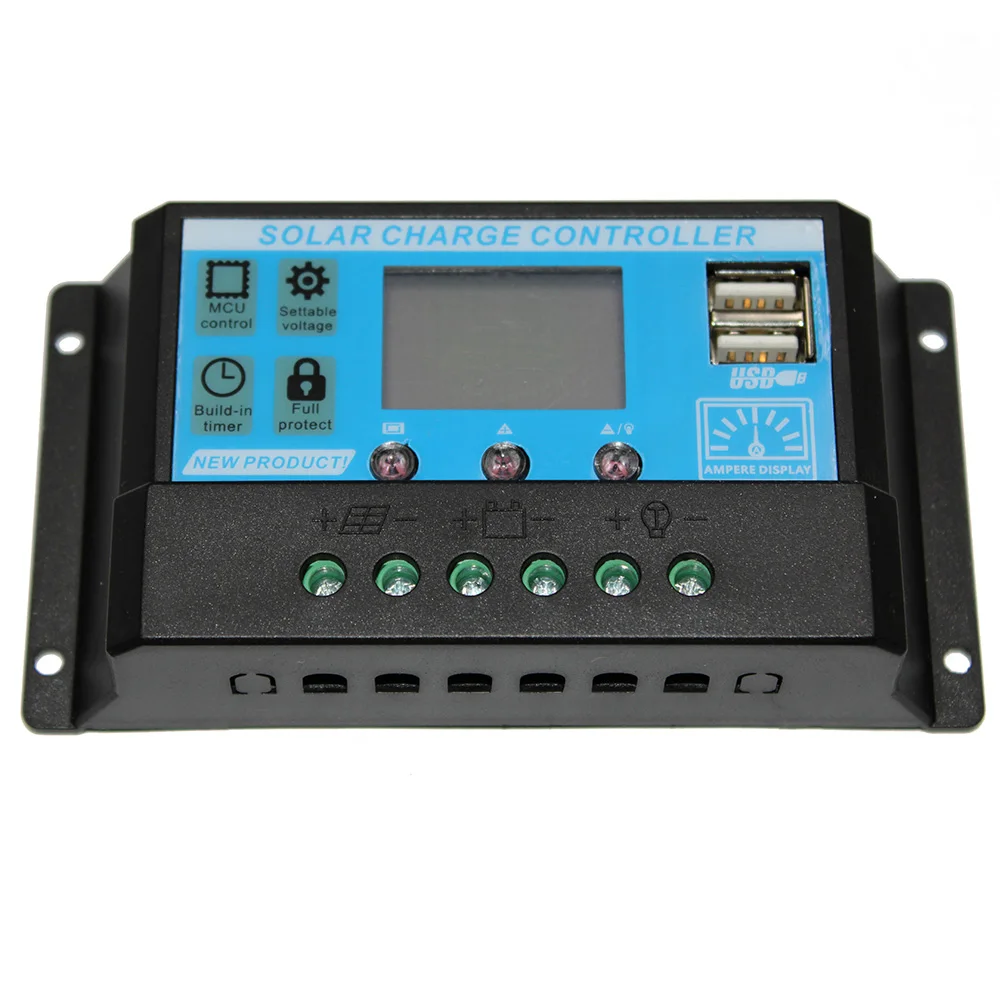

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
5.Connect the battery to the charge regulator – plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
6.Connect the photovoltaic module to the regulator – plus and minus.
7. Connect the consumer to the charge regulator – plus and minus.
