Features
-Start the wind speed is low, high wind energy utilization; small size, good looks, low operating vibration;

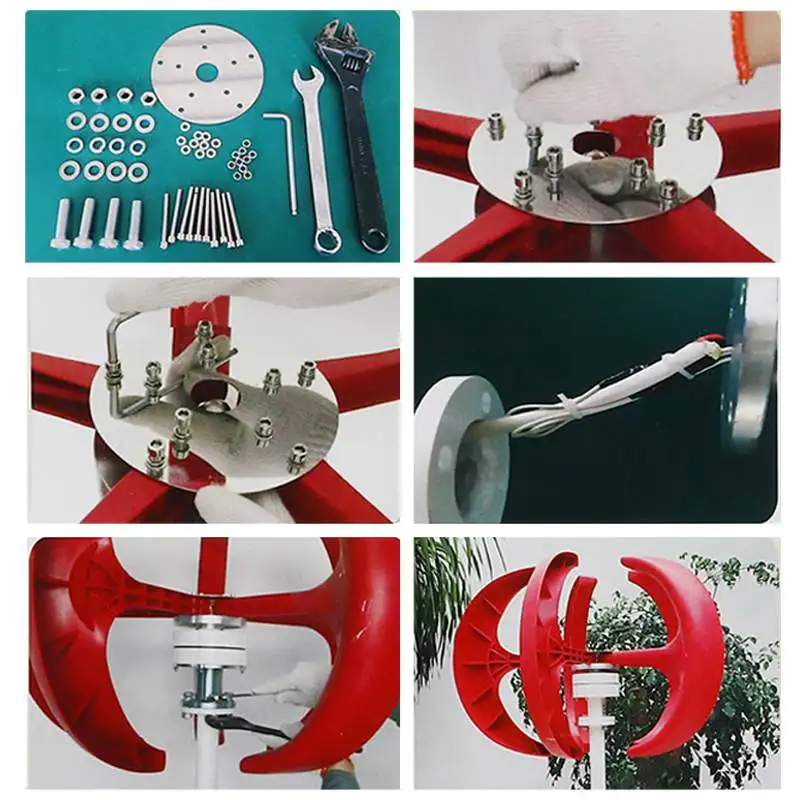

-The installation of user-friendly design, convenient equipment installation, maintenance and repair;
-Using high-power tracking intelligent microprocessor control, effective regulation of current and voltage;

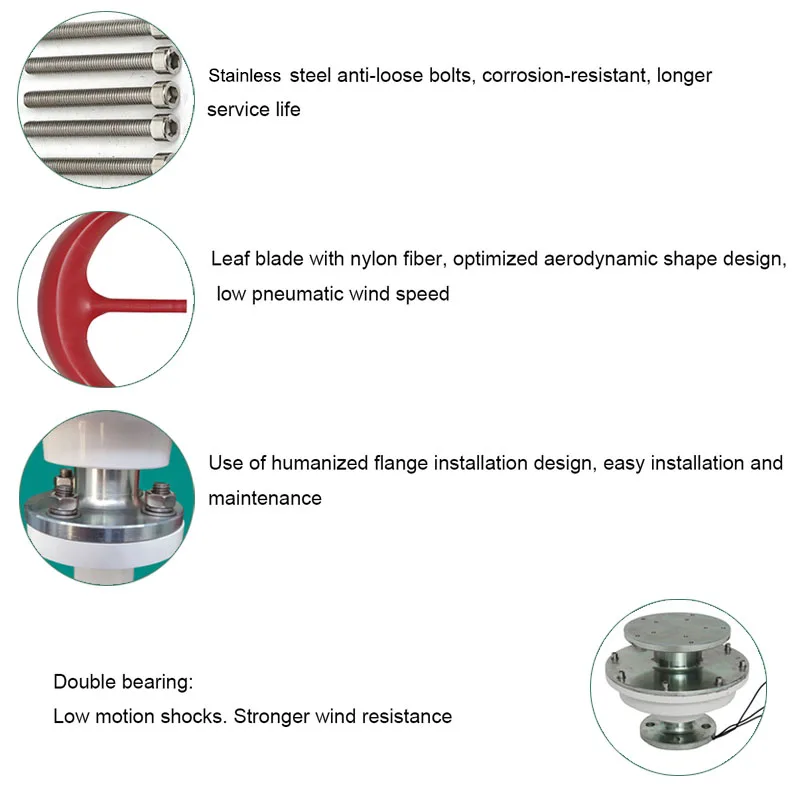

-The shell is made of aluminum alloy die-casting, with double bearing carrier, anti-typhoon capacity is stronger, safe and reliable operation;
-The wind wheel blade with a new technology by precision injection molding, coupled with the optimization of the aerodynamic shape design and structural design, high wind energy utilization factor, an increase of annual power generation;

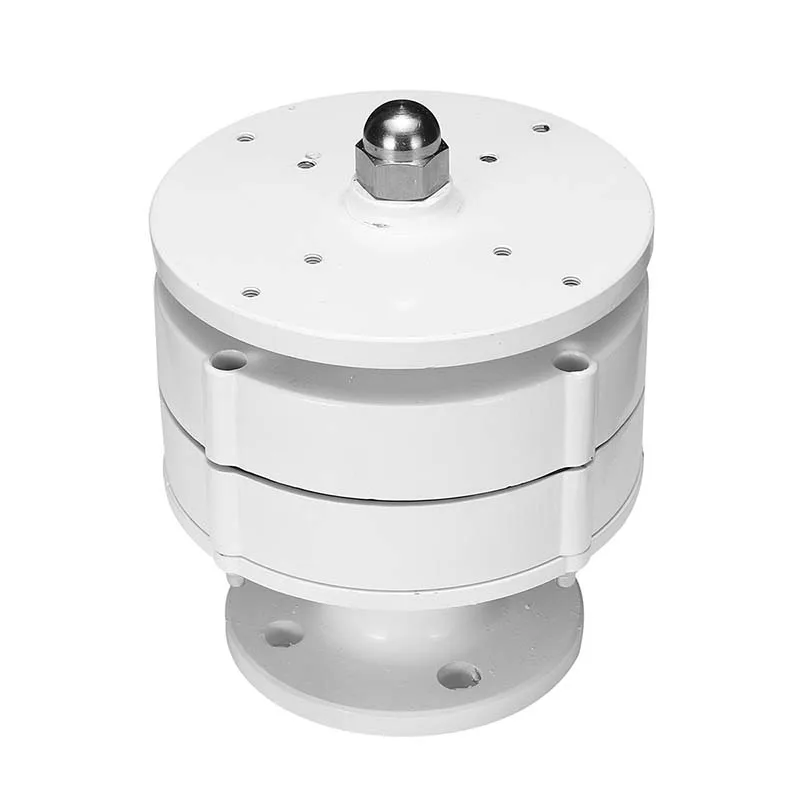

-The generator using patented magnetic bearing alternator, coupled with a special stator design, effectively reduce the resistance torque of the generator, while the wind wheel and the generator has a more good matching characteristics, the unit running reliability.
-Vertical axis design, not affected by wind direction.
Specifications
1. Leaf material: nylon fiber
2. Size:

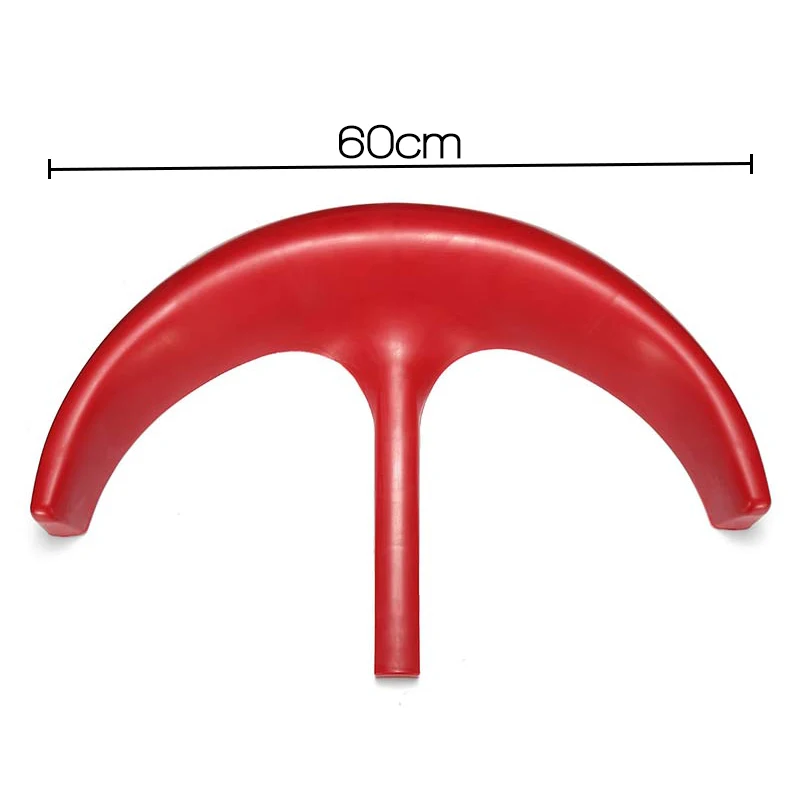

-Blade length: 600mm
-Wind wheel diameter: 900mm
3. Power: 6000W
4. Rated voltage: 12/24V
5. Starting wind speed: 1.5m / s
6. Rated wind speed: 10m/s
7. Safe wind speed: 45m / s
8. Number of leaves: 4pcs
9 Braking method: electromagnetic
10. Wind direction adjustment: automatic adjustment of the wind
11. Wind power and type: three-phase AC permanent magnet synchronous generator
12. Operating temperature: -40 ℃~80 ℃

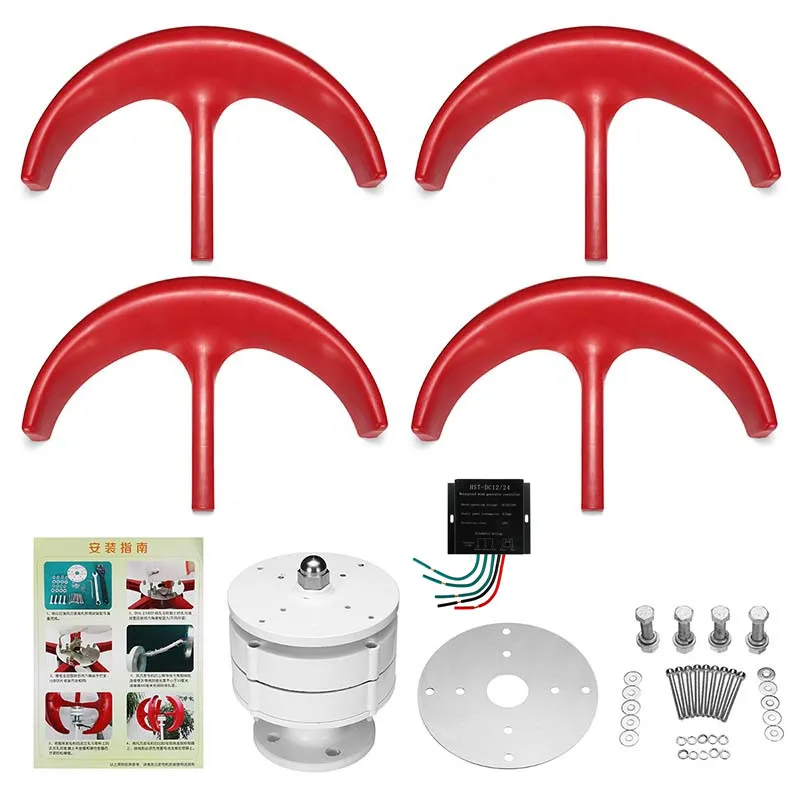

Package Includes:
1x wind turbine(Not included stents)
1x Wind Controller
