Features:
-Start the wind speed is low, high wind energy utilization; small size, good looks, low operating vibration;
-The installation of user-friendly design, convenient equipment installation, maintenance and repair;
-Using high-power tracking intelligent microprocessor control, effective regulation of current and voltage;
-The shell is made of aluminum alloy diecasting, with double bearing carrier, antityphoon capacity is stronger, safe and reliable operation;

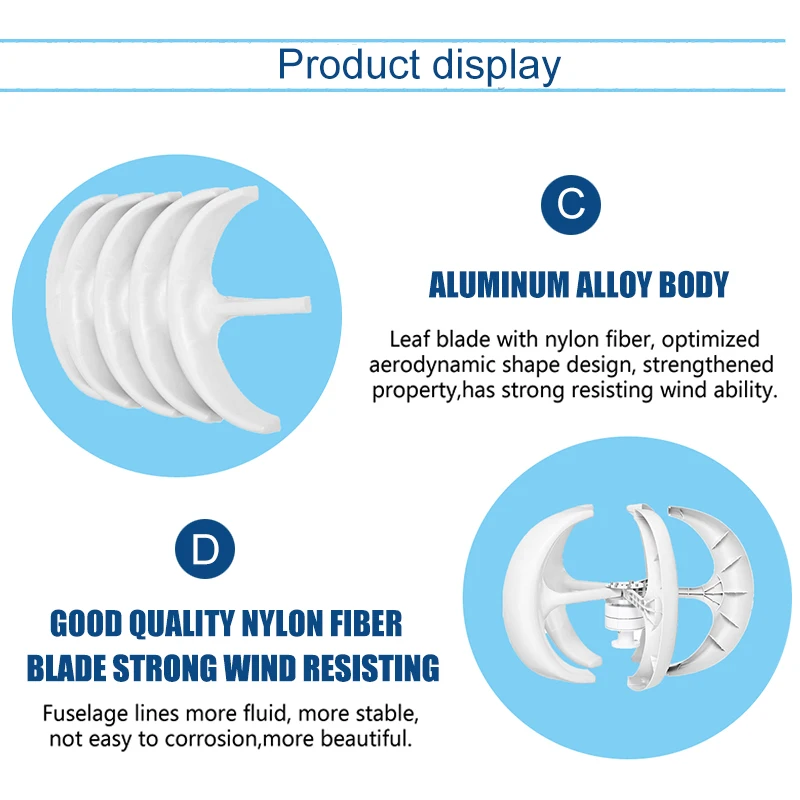

-The wind wheel blade with a new technology by precision injection molding, coupled with the optimization of the aerodynamic shape design and structural design, high wind energy utilization factor, an increase of annual power generation;

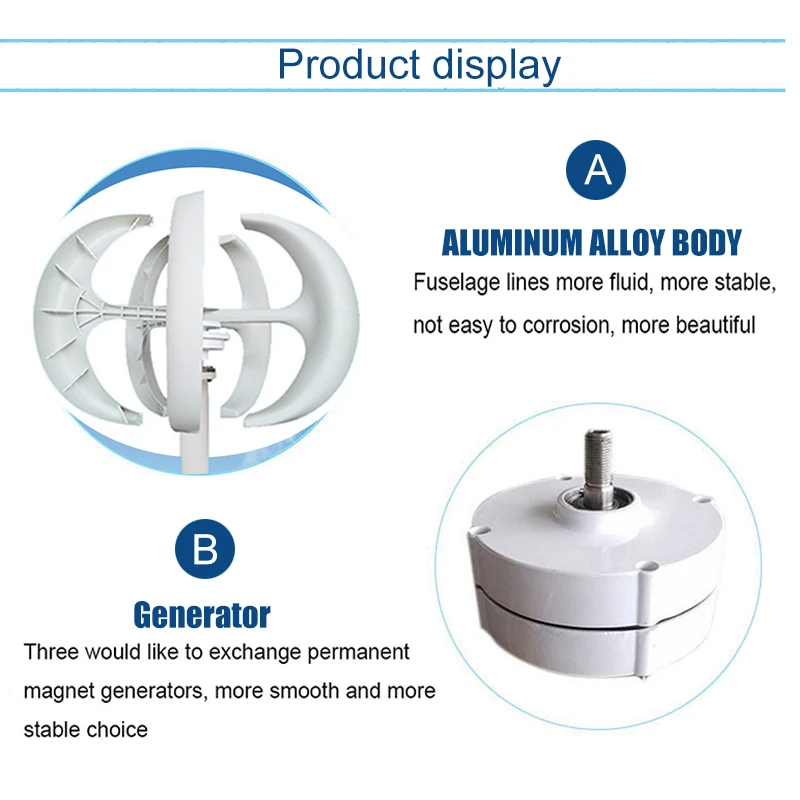

-The generator using patented magnetic bearing alternator, coupled with a special stator design, effectively reduce the resistance torque of the generator, while the wind wheel and the generator has a more good matching characteristics, the unit running reliability.
-Vertical axis design, not affected by wind direction.
Specifications:
Leaf material: nylon fiber
Color: white
Size:
-Blade length: 600mm
-Wind wheel diameter:900mm
Weight:12000g
MAX power: 5000W/5500W/6000W
Rated voltage: 12/24V
Starting wind speed: 2m / s
Rated wind speed:12m/s
Safe wind speed: 45m / s
Number of leaves: 5pieces
Braking method: electromagnetic
Wind direction adjustment: automatic adjustment of the wind
Wind power and type: three-phase AC permanent magnet synchronous generator
Operating temperature: -40 ℃ – 80 ℃
Package Include:
1X Wind turbines(Not included stents)
